Brush Tufting Controller
Brush Tufting
- Our specially designed control-box having dual micro-processor subsystem to accommodate both the time-critical tasks as well as to provide rich graphical user interface. The real-time controller handles the servo motors and the main tufting-shaft, while the application controller provides operator-friendly graphical software interface for easy operations.
- We think on the operational safety first, by providing various interlocking and safety checks before starting any motorized motion.
Brush Tuffing Features
High Speed
A customer machine can punch more around 250 tuffing points at an average distance of 20mm. Our real-time controller can sense the tuffing shaft position in milliseconds to perform precise brush movements.
Operational Friendly
Touch Screen interface provides the best user experience. Operators can control the machine via control panel or software as per convenience.
Safe Operator
The controller checks all safety interlocks before any motorized motion. Wiring is handled by professionals ensuring maximum safety.
Precision Positioning
Integrated servo motor motion control ensures accurate and consistent tuffing point punching every time.
Hybrid Control Box
Dual micro-controller subsystem handles both time-critical motion control and high-quality graphical interface on the touch display.
High Production
Easy-to-use operational panel allows operators to manage multiple machines efficiently. One-go execution performs complete tuffing automatically.
Software
Operational Control
- Main Panel Control

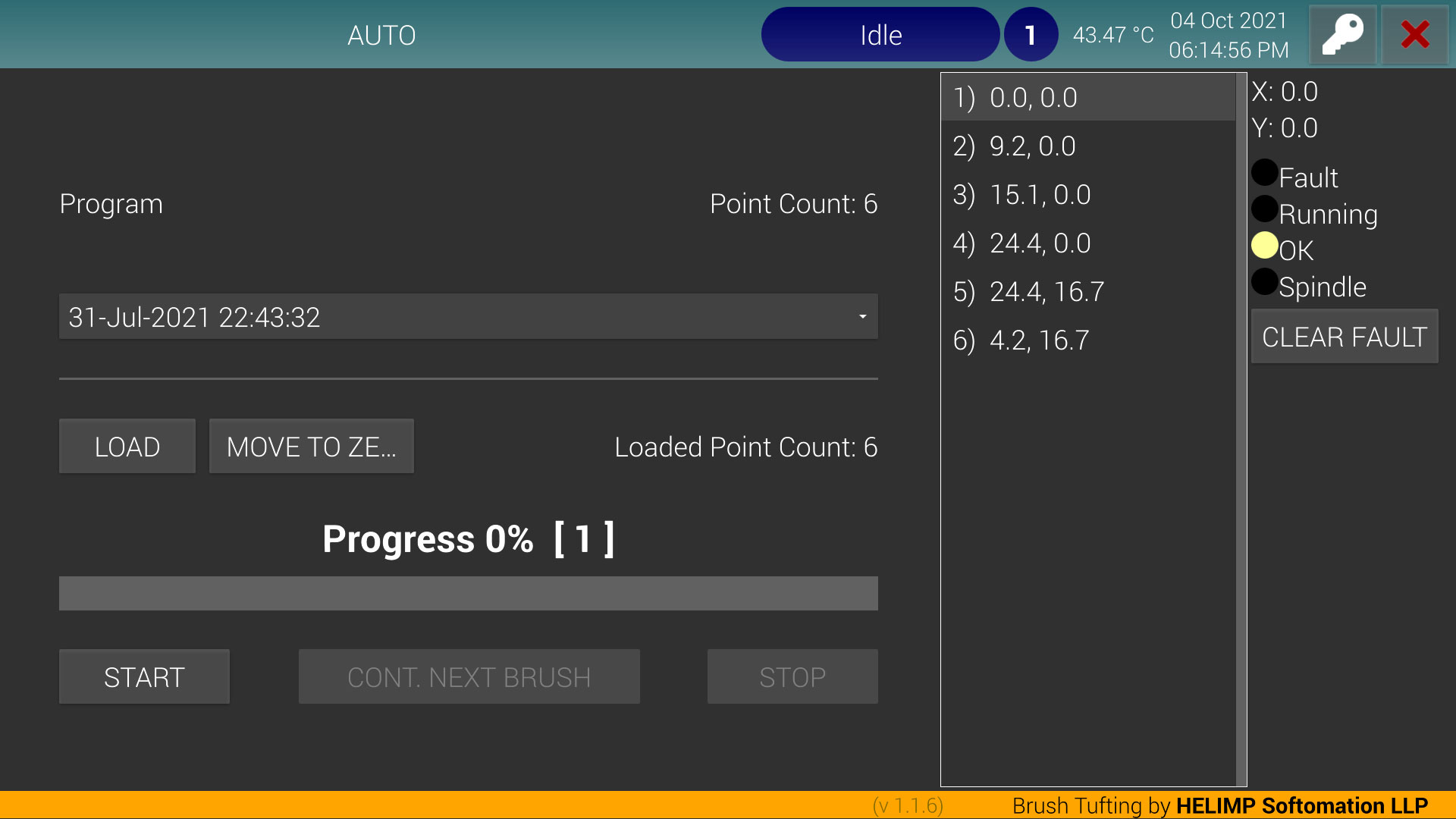

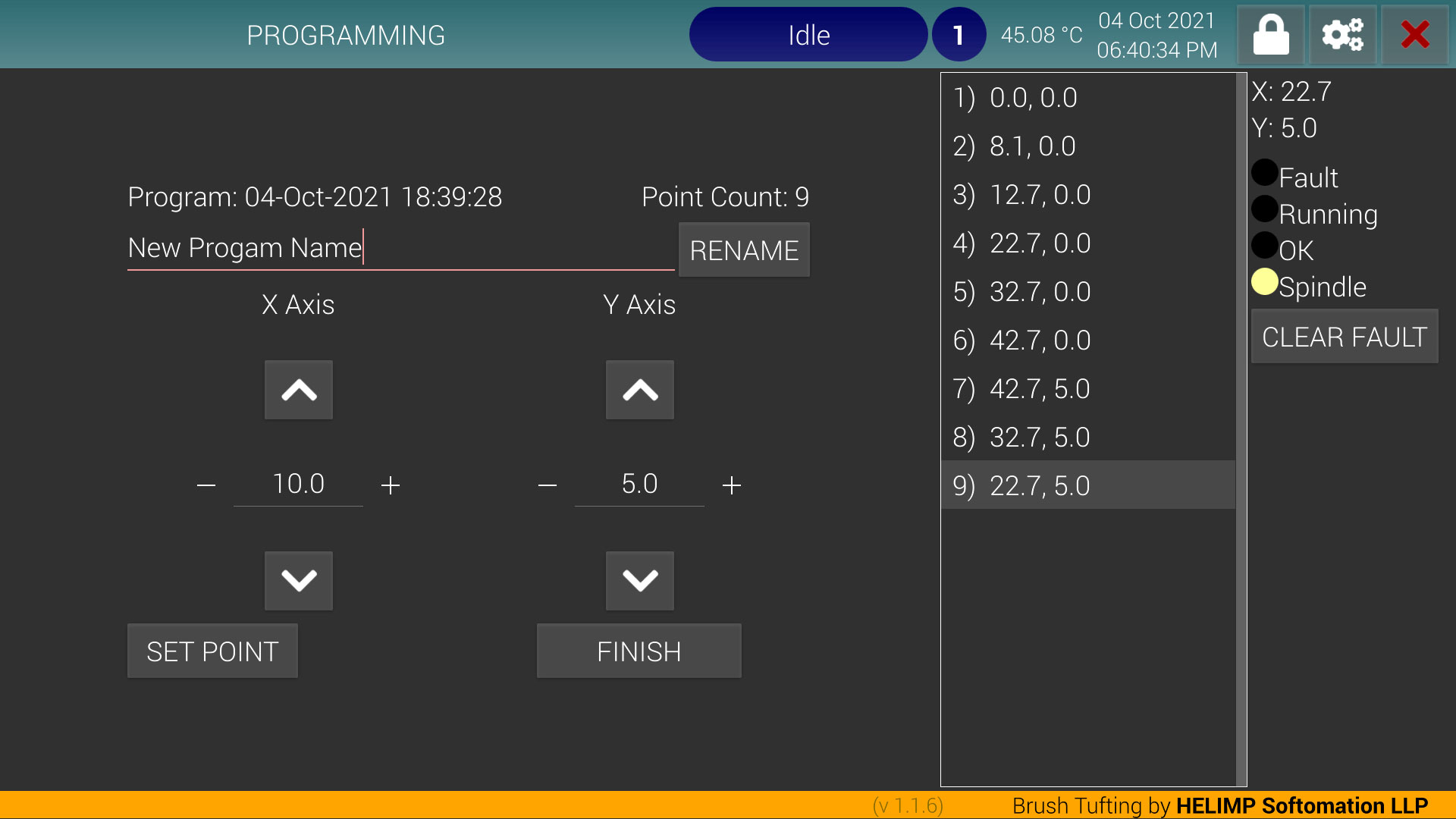

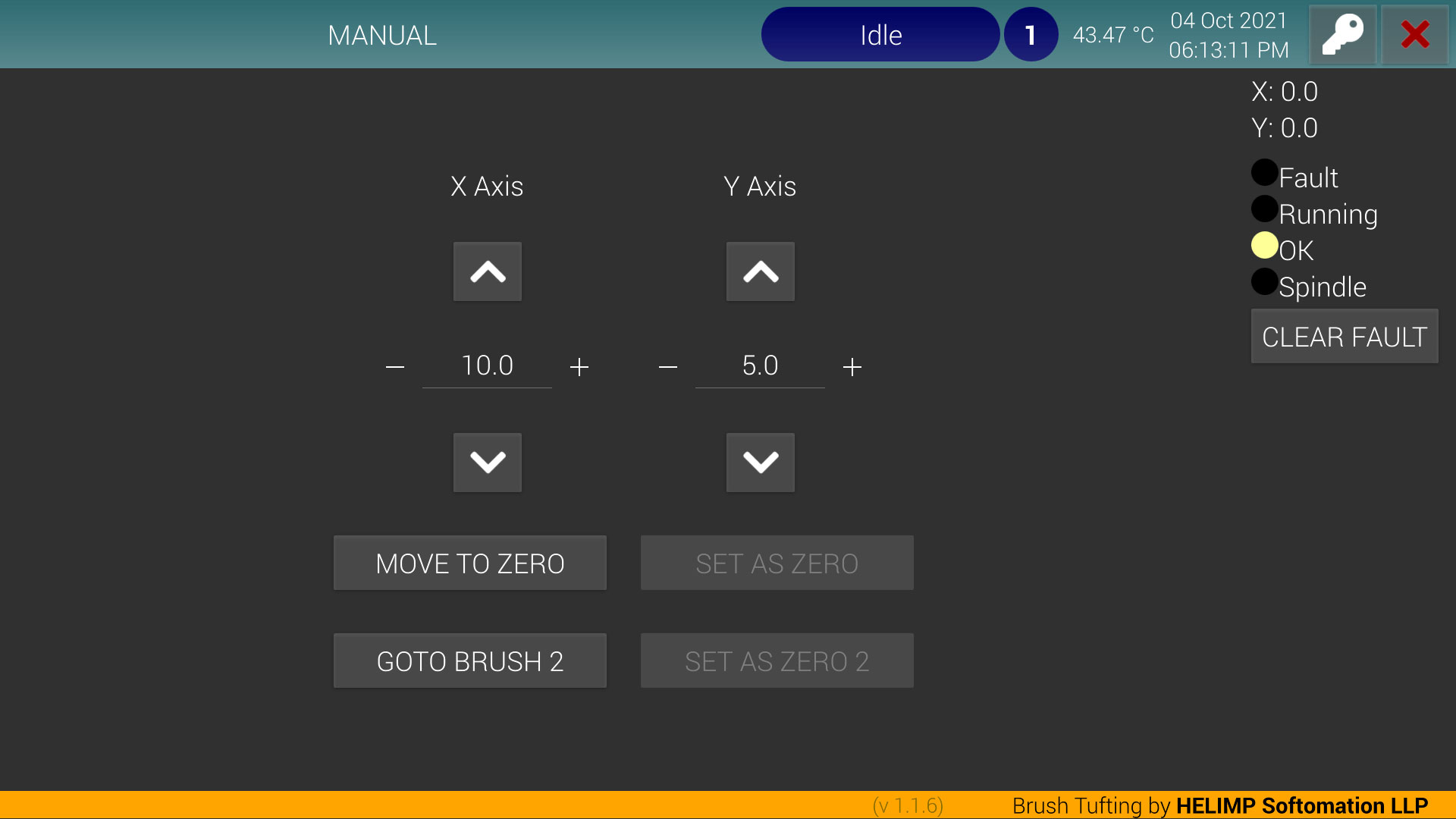

- HMI Screen

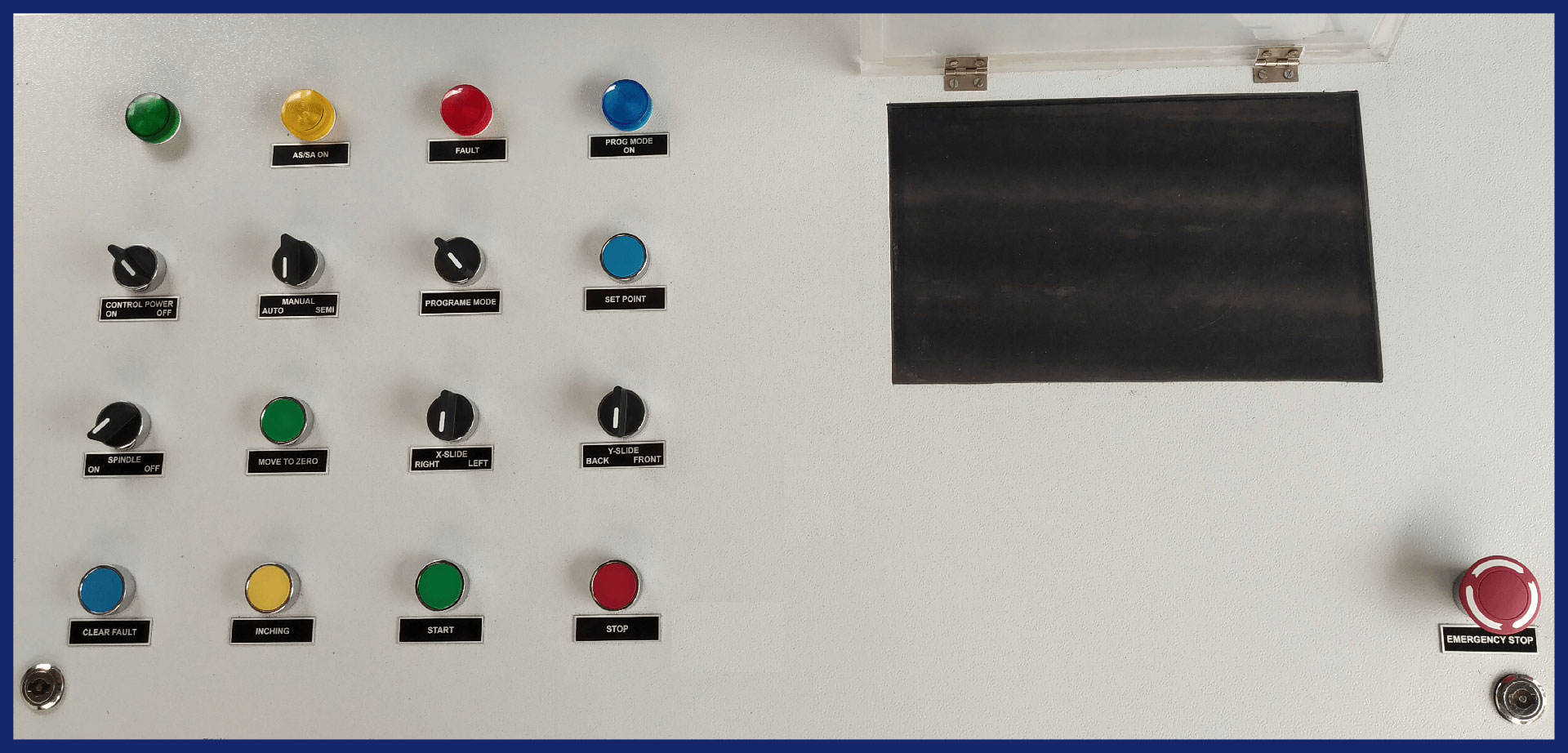

- Local Panel
Motorized Stage Control
Main Shaft Positioning
Power Supply
230VAC / 50Hz
1Phase / 3Phase depending on the servo selection
Protection
Overcurrent/Overload protection by MCB/MPCB
Cooling Fans
Master panel fan for overall control panel box
Dedicated controller fan for the best system performance
