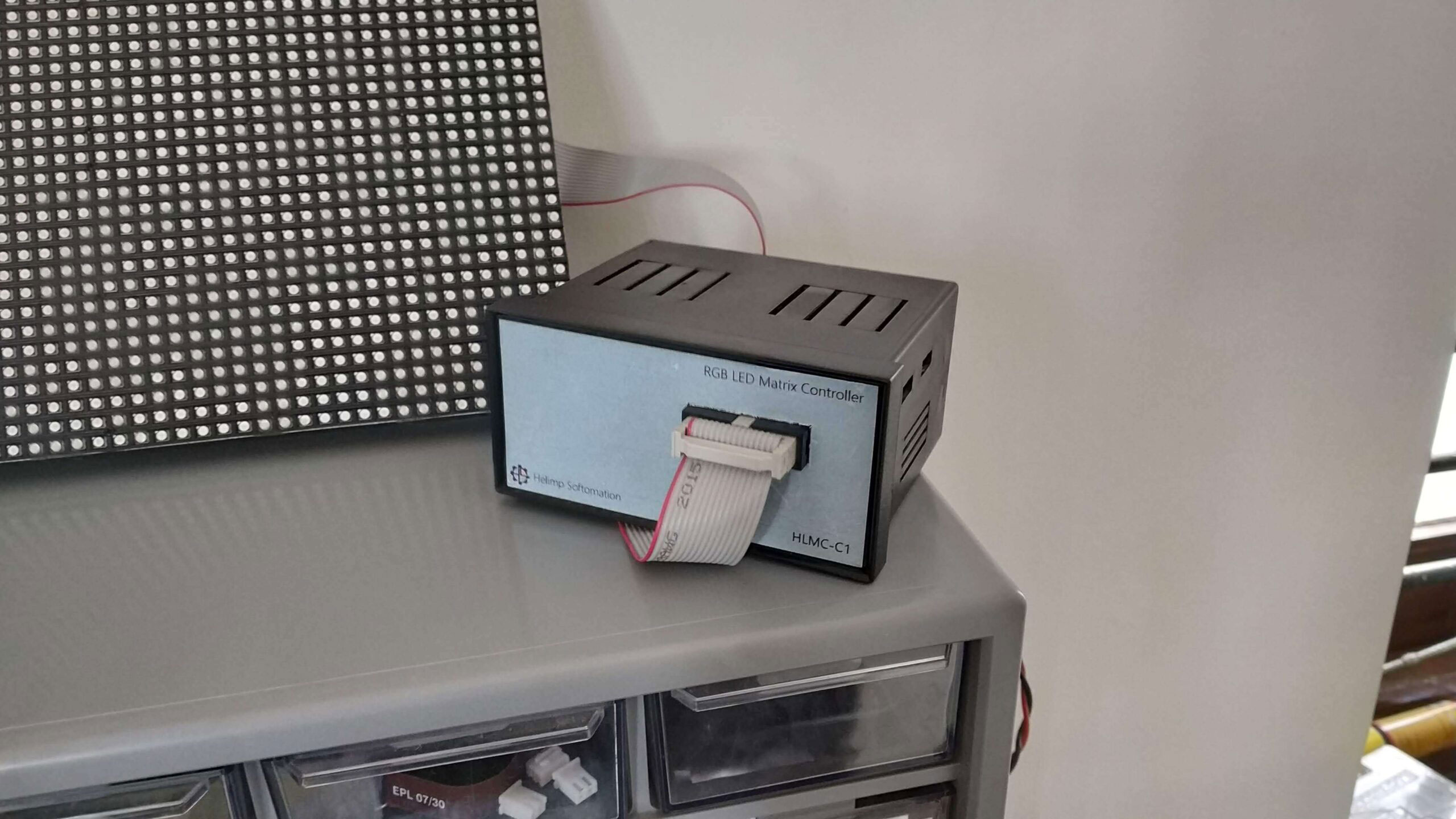

LED Matrix Controller

Special purpose controller unit to drive LED matrix display for the visualization of industrial process parameters like running batch, production status, running production code, etc. With generic electronics design and firmware development, the controller can be customized to fulfil any industrial need – it supports RS-485 Modbus protocol by default for easy integration with any compatible PLC or IO unit
  • Single basic control unit is capable to drive two LED Matrix display of 64×32 pixels.
  • As per requirement, customized controller can be developed to drive even more parallel displays if needed. With industrial RS-485 Modbus support, easy to integrate with existing process plant having Modbus monitoring network. Any other communication method like CAN, Analog Input, TCP events, BLE/Wi-Fi network, etc. can be supported on request to gather required data for standalone display.

LED Matrix Controller Features

Advanced LED matrix control solutions with multiple display support, industrial connectivity, and easy configuration.

Multiple Displays

Single controller can handle multiple displays mounted vertically or horizontally to display more parameters.


RS-485 Modules

Modbus over RS-485 is built in to the base controller unit, makes it easy to connect with process plant's modulus network to monitor critical parameters.


Alarm

Configurable alarm settings on process parameters for visual alarm on display panel with blinking text or signal to blow horn for audible alarm.


RTC (Optional)

Builtin RTC to display clock on LED screen, it can be configured using software interface to change current time.


Easy Configuration

PC-software is available for easy setup. Each text line can be set to display process parameter from Modbus, or to display static text as needed.

Technical Data

Control Power

7V to 12V DC (500 mA)

Controller Box

Panel mount enclosure with screw terminal for power and FRC connector for display signals

Communication

RS-485 two-wire Modbus

RTC

Built-in RTC with battery

Alarm Signal

Opt isolated PNP output for Alarm signal (can be connected to hooter for audible alarm)

LED Matrix Display

Can support Single-colour or Multicolour-RGB LED Matrix Display
